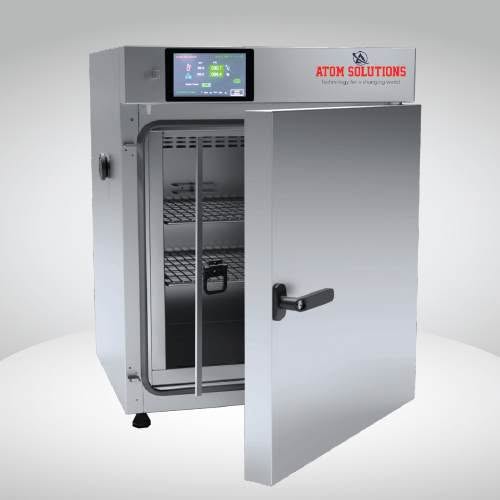

Laboratory Incubator

A laboratory incubator is a heated, insulated box used to grow and maintain microbiological or cell cultures. The laboratory incubator maintains optimal temperature, humidity and gaseous content of the atmosphere inside. The purpose of a laboratory incubator is to provide a controlled, contaminant-free environment for safe and reliable work with cell and tissue cultures by regulating conditions such as temperature, humidity, and CO2. Lab incubators are essential for the growth and storage of bacterial cultures, cell and tissue culture, biochemical and haematological studies, pharmaceutical work and food analysis.

Atom make Laboratory Incubator’s are perfectly designed for the growth & storage of bacterial cultures, gentle incubation & conditioning and Media Preparation.

These Laboratory Incubator’s are specifically developed to meet FDA/ICH stability requirements for accurate control and uniformity of temperature.

Atom make Laboratory Incubator’s ensure consistent performance at any temperature within a range of (Ambient+5)°C to 60°C at an accuracy of ±0.5°C & at an uniformity of ±1°C. Atom make Incubator’s feature’s various safety, audio visual alarms, 21 CFR part 11 software and a vast range of options.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.

  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.

  • Stainless Steel Trays (Perforated or Mesh type)
  • Illuminated working area for clear Internal view.

  • U-shaped SS tubular heaters.

  • Forced air circulation for uniform temperature.

  • Complete Operations is driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.

  • High speed Ethernet based communication.

  • High speed Ethernet based communication.

  • High-quality make temperature sensor (PT100, Class A) for seamless performance.

  • Safety devices for Low & High temperature cut-off settable thermostats.

  • Audio/Visual alarms for deviations and corrective actions.

  • PU wheels for easy movement

  • Full length inner glass door & outer metal door with gasket & lock.

  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.

Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: (Ambient+5)°C to 60°C
Temperature Accuracy: ± 0.5°C
Temperature Uniformity: ± 1°C
  • Atom Webdesk Software.
  • Temperature Scanners.
  • Stand by Cooling System with auto switch overs applicable for 430 litre & above models.
  • Door Access system (Numerical or Biometric)
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liters Internal size in mm External size in mm Tray Qty. Tray size in mm Electrical load
AS/LI/SI15 150 500Wx400Dx750H 625Wx860Dx1350H 2 405Wx400Dx30H 0.75 KW
AS/LI/SI25 250 700Wx400Dx900H 825Wx860Dx1500H 2 605Wx400Dx30H 0.75 KW
AS/LI/SI40 400 700Wx500Dx1150H 825Wx960Dx1750H 3 605Wx500Dx30H 0.75 KW
AS/LI/SI50 500 700Wx600Dx1200H 825Wx1060Dx1800H 3 605Wx600Dx30H 0.75 KW
AS/LI/SI60 600 700Wx600Dx1450H 825Wx1060Dx2050H 3 605Wx600Dx30H 0.75 KW
AS/LI/SI80 800 700Wx800Dx1450H 825Wx1260Dx2050H 4 605Wx800Dx30H 1 KW
AS/LI/SI100 1000 830Wx830Dx1450H 955Wx1290Dx2050H 4 735Wx830Dx30H 1 KW
